F560-60si CIJ Inkjet Printer

  • F500 Series CIJ Printer

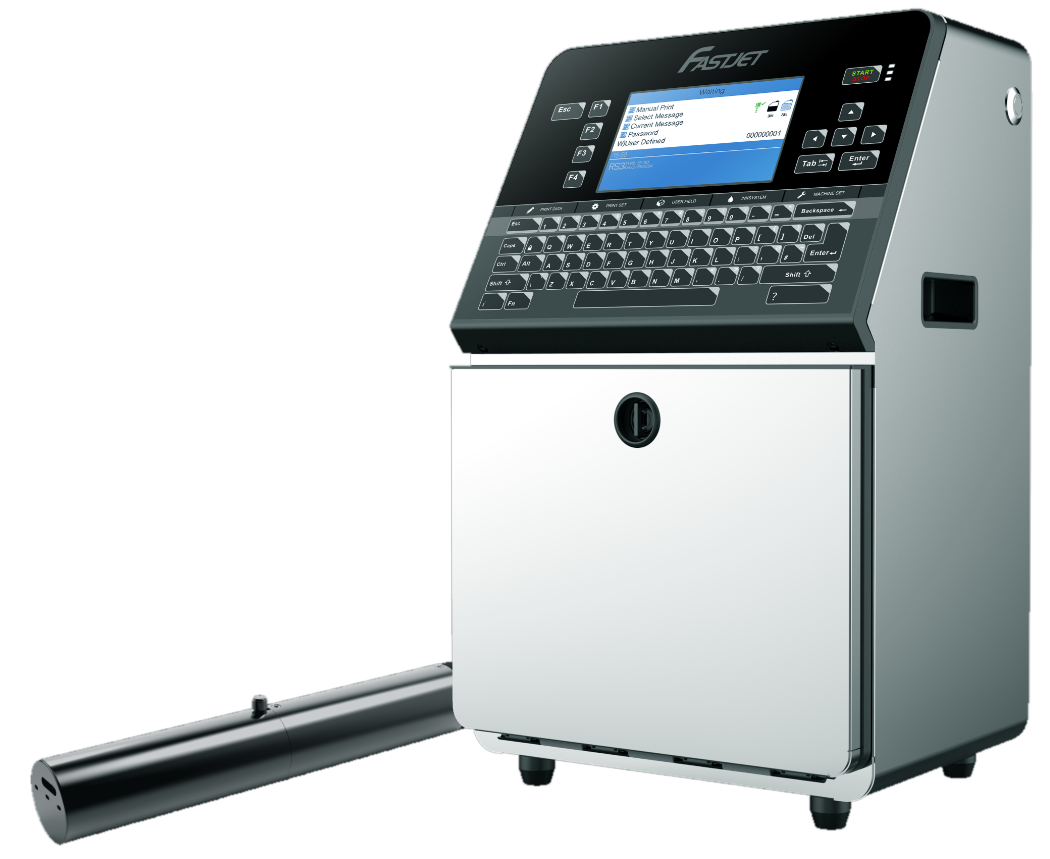

F560 - 60si CIJ Inkjet Printer

High-Definition Precision Printer Equipped with a precision 60μm nozzle, the F560-60si is optimized for applications requiring fine, detailed characters and high-definition codes. It supports higher print speeds (up to 520m/min) and a larger 34-dot matrix, allowing for more complex multi-line messages compared to the F540. This model is ideal for marking smaller products or high-density information where clarity is critical.

Product Parameters



Technical Parameters
F560 Configuration and Parameters
Nozzle Diameter 70um
Max Vertical Printing Dot Matrix 34
Message Editing English , Sinhala , Tamil
Languages English
Printing Modes Single-print, continuous printing, counting print, meter-count printing, full-function reciprocating printing
Printing Quality Standard, high-speed, high-quality
Protection Rating IP54, optional IP55
Communication Ports USB、optional serial port
Ink System 750ml/375ml cartridge-based dye ink
Flexible Tube Length: 2700mm, Diameter: 21mm, Bend Radius: 150mm, Optional Length: 5000mm
Printing Height 1.2-15mm
Maximum Printing Speed 520m/min (40μm model, printing single-line 5-dot matrix with 0.42mm column width)
Non-contact printing distance 2-15mm
Input System American keyboard layout
Optional Dot Matrix Fonts 5x5，7x4，7x5，9x6，11x8，16x11，24x16，32x22，6x5，9x6 (bold), 11x8 (bold) tower fonts
Operating Temperature 5-45 °C
User Fields QR codes, barcodes, patterns, clocks, counters, shifts, external data, etc.
Electrical Requirements 200-240VAC, 50Hz
Power Consumption Rated Power 150W
Weight Net Weight: 27kg, Gross Weight: 45kg (including accessories and packaging)
Optional Accessories Positive pressure pump, three-color alarm light, etc.
